LCD splicing video wall
- Any layout: 2×2, 3×3 or custom
- Windowing, overlay, cross-screen roaming
- All-metal shell; anti-static and EMI shielded
- Auto image-retention removal for monitoring
46″ / 49″ / 55″ · 0.88–3.5 mm
Video Walls & LED Displays
LCD video walls and fine-pitch LED displays
An LCD video wall tiles industrial-grade DID panels into one large image; a fine-pitch LED wall does the same seamlessly. We supply both, together with the splicing processor, video matrix and control software, and have installed them in exhibition halls, control rooms and banks.
Key facts
- LCD bezel (seam)
- 3.5 mm, 1.8 mm or 0.88 mm
- LCD panels
- Samsung, LG or BOE; 1920 × 1080; direct LED backlight
- LED pixel pitch
- From 1.25 mm; > 3840 Hz refresh
- Control
- Splicing processor, video matrix, distributor, central software
- Operation
- 24/7, smart temperature control, anti-image-retention
Models in this range

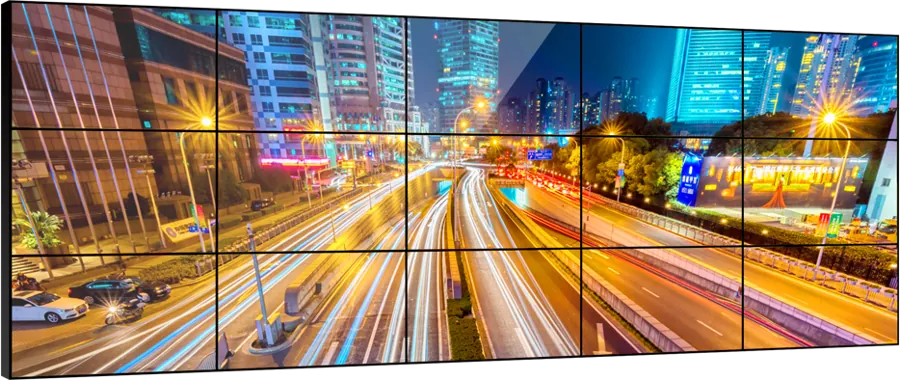

Wide-format splicing wall
- Panorama layouts for lobbies
- Mixed analog and HD digital inputs
- Adjustable backlight to reduce eye strain
- Silent cooling design
Custom matrix

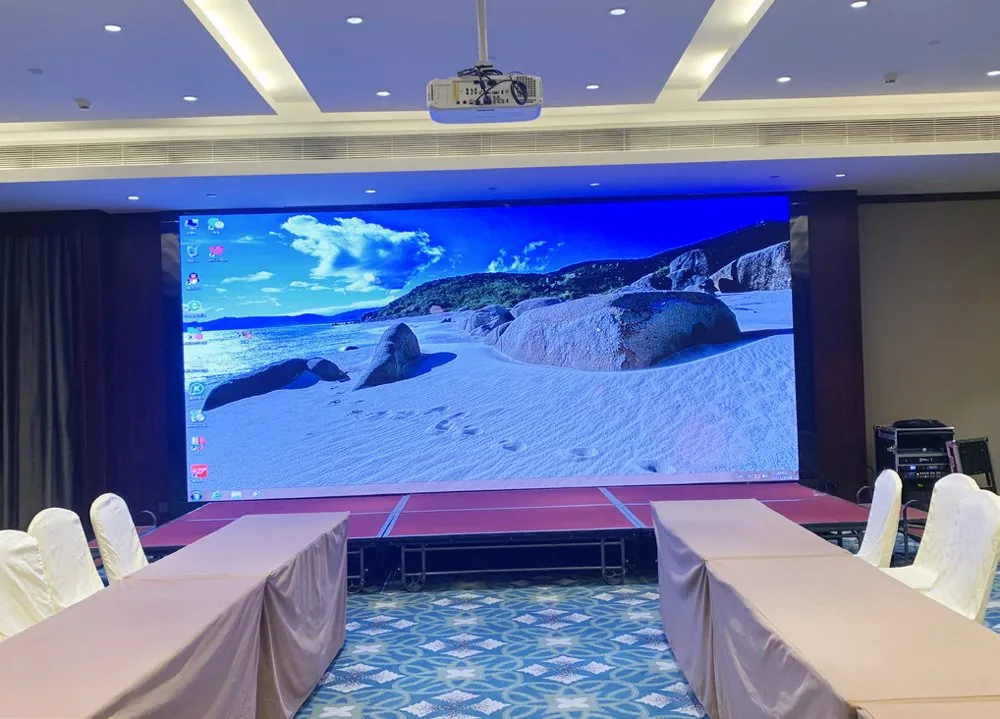

Fine-pitch LED display
- P1.25 pitch, 640,000 dots/m²
- Front or rear maintenance, 5.5 cm wall depth
- > 3840 Hz refresh, 16-bit grayscale
- Indoor and outdoor cabinets
P1.25 · 600 × 337.5 mm cabinet
Reference specification — P1.25 indoor LED wall
| Pixel pitch / density | 1.25 mm · 640,000 dots/m² |
|---|---|
| Module | 150 × 168.75 mm, 120 × 135 px |
| Cabinet | 600 × 337.5 mm, 480 × 270 px |
| Refresh / grayscale | > 3840 Hz · ≥ 65,536 levels |
| Viewing | Best distance 1.5–30 m · 160° angle |
| Maintenance | Front and rear; wall-mounted, 5.5 cm total depth |
| Power | Average 150–300 W/m²; max ≤ 800 W/m² |
| Lifetime | 100,000 h |
| Operating temperature | −20 °C to +55 °C |
Specifications are from the factory catalog and may change with configuration. Ask for the current spec sheet.
What you can customize
- Wall size, layout and bezel width
- Panel brand and brightness
- Processor, matrix and control software set
- Floor stand, wall bracket or pop-out mount
Applications
- Control and monitoring rooms
- Exhibition and city planning halls
- Corporate lobbies and showrooms
- Conference and event halls
Frequently asked questions
Related buying guides
LCD video walls: bezel width, processors and viewing distance
Which bezel width should I choose for an LCD video wall?
0.88 mm for close viewing and data-heavy content, 1.8 mm as the common balance of cost and seam, 3.5 mm for budget walls viewed from a distance.
LCD video wall or LED wall — which is better?
LCD walls cost less per square meter and are sharper up close, but have visible seams. Fine-pitch LED is seamless and brighter but costs more. Many control rooms use LCD; lobbies and halls often choose LED.
What is a splicing processor?
It splits and scales input signals across the wall so you can open windows, overlay sources, zoom and roam images across screens. A matrix only routes one source to one screen.
Related product lines
Face Recognition Terminals
Access control and attendance with card, QR and turnstile integration.
Live-Streaming All-in-Ones
4K camera, beauty light, teleprompter and one-tap green-screen for live commerce.
Smart Lockers & Vending
Parcel and storage lockers, charging cabinets and touch-screen vending machines.
Request a quote for this range
Send a size, a sketch or a reference model. You get a spec sheet and factory price from an engineer, usually within one working day.
