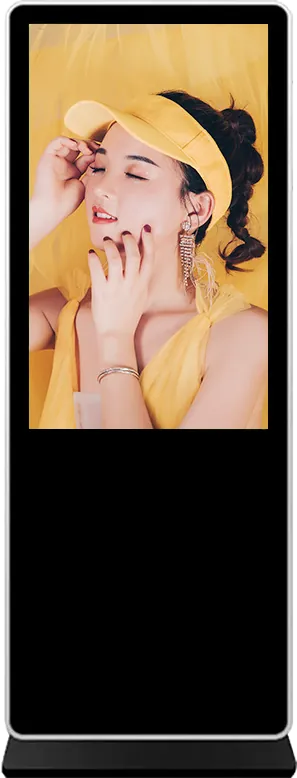

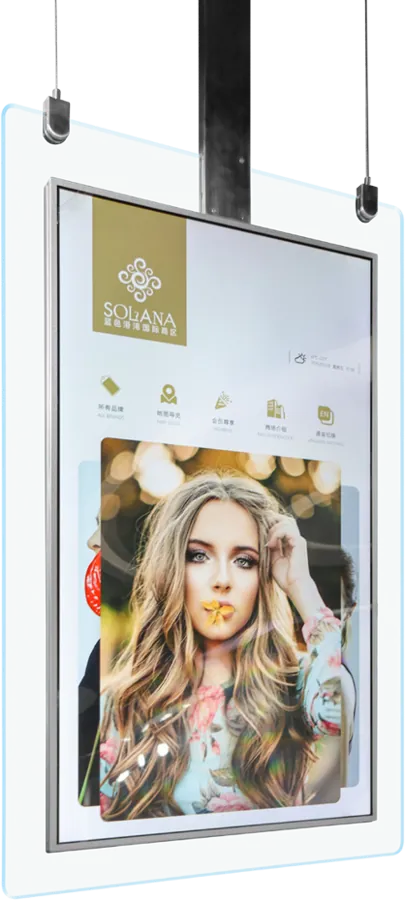

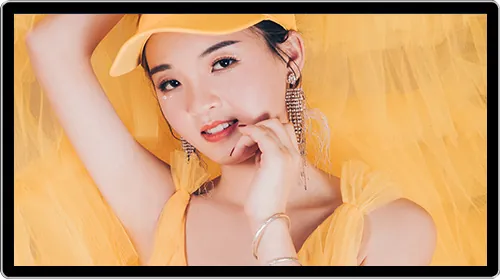

DisplaySourcing builds indoor and outdoor digital signage — floor-standing kiosks, wall-mount screens, ceiling-hung double-sided displays and battery-powered outdoor posters — in its own Guangdong factory. Every model ships with remote content publishing and can be changed in size, housing color, touch option and operating system.
| Panel | 55″ A-grade LED LCD (LG / BOE / CSOT) |
|---|---|
| Active area | 1211.4 × 682.2 mm |
| Resolution | 1920 × 1080 (FHD) |
| Brightness / contrast | 350 cd/m² · 1200:1 |
| Viewing angle / lifetime | 89/89/89/89 · > 50,000 h |
| Android build | RK3288 Cortex-A17, Mali-T764, 2 GB DDR4, 16 GB, Android 7.1 |
| Windows build (optional) | Intel Core i3 / i5 / i7, 4 GB DDR3, 128 GB SSD |
| Touch (optional) | Capacitive, 10 points, ≤ 15 ms |
| Housing | Aluminium frame / sheet-metal back; black-silver or silver-white |
| Power | AC 100–240 V, 105 W |
| Net weight | 50.5 kg |
Specifications are from the factory catalog and may change with configuration. Ask for the current spec sheet.

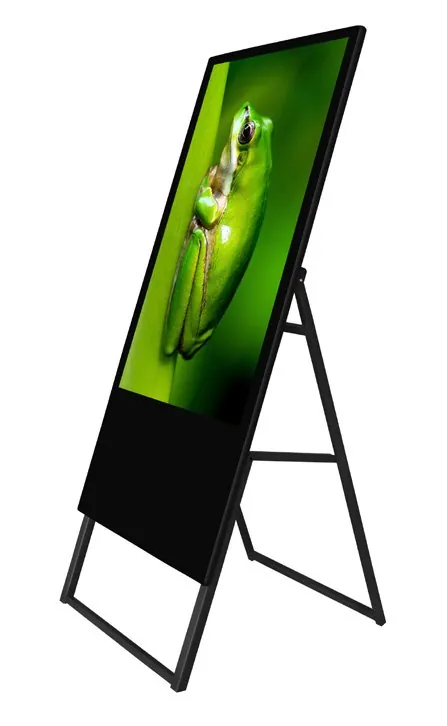

For screens in direct sunlight, specify at least 1,500 nits. Our fixed outdoor model runs at 1,500 nits and the portable outdoor poster at 1,800 nits, both with automatic brightness adjustment.
Yes. Every networked model runs our B/S (web) or C/S (desktop) publishing software with split-screen layouts, scheduling, play logs and group management. Units can also play from USB or SD card offline.
Android (RK3288/RK3399) is the default for playback and simple interaction: lower cost, lower power and easy remote management. Choose Windows when you must run existing PC software.
Send a size, a sketch or a reference model. You get a spec sheet and factory price from an engineer, usually within one working day.
