Self-ordering kiosk
- Touch ordering with QR / NFC payment
- Built-in receipt printer
- 180° wide-window barcode scanner
- Plays ads when idle; multilingual UI
Floor-standing or wall-mount
Self-Service Kiosks
Self-service kiosks with the peripherals your process needs
A self-service kiosk is a touch-screen terminal that lets customers order, pay, check in or print without staff. We build them on our own Android mainboards or Intel PCs and fit the exact peripherals your workflow needs — receipt printer, QR scanner, ID or card reader, card dispenser, camera.
Key facts
- Screen sizes
- 15.6″, 21.5″, 27″, 32″; single or dual screen
- Platforms
- Android (RK3288 / RK3399) or Windows
- Peripherals
- 80 mm thermal printer, A4 printer, QR/barcode scanner, ID/IC reader, card dispenser, face camera
- Mounting
- Floor-standing, wall-mount or countertop
- Cabinet
- Cold-rolled steel, powder-coated, custom color
Models in this range
Hotel self check-in kiosk
- Face recognition + ID document verification
- Automatic room-card issue and recycling
- 80 mm thermal receipt printer
- Connects to hotel management systems
21.5″ · Android / Windows

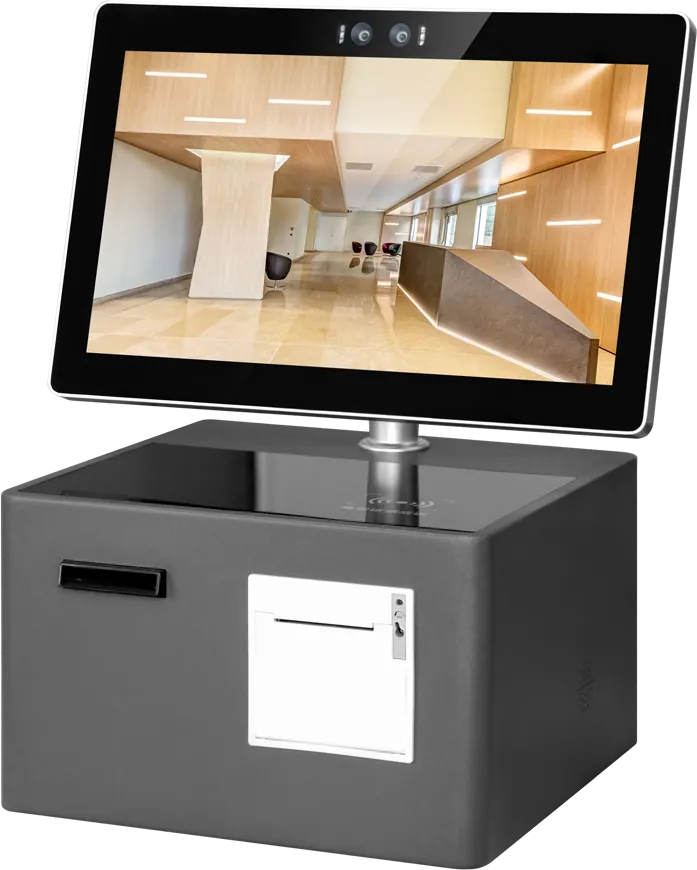

Desktop check-in terminal
- Countertop format for reception desks
- Binocular camera and ID/IC reader
- Receipt printing and card issuing
- Back-office data statistics
15.6″ · countertop
Payment & top-up kiosk
- Bill payment, card top-up and inquiry
- QR payment and card read/write module
- Thermal printer and barcode module
- PIR presence sensor wakes the screen
RK3399 · Android · printer · card reader

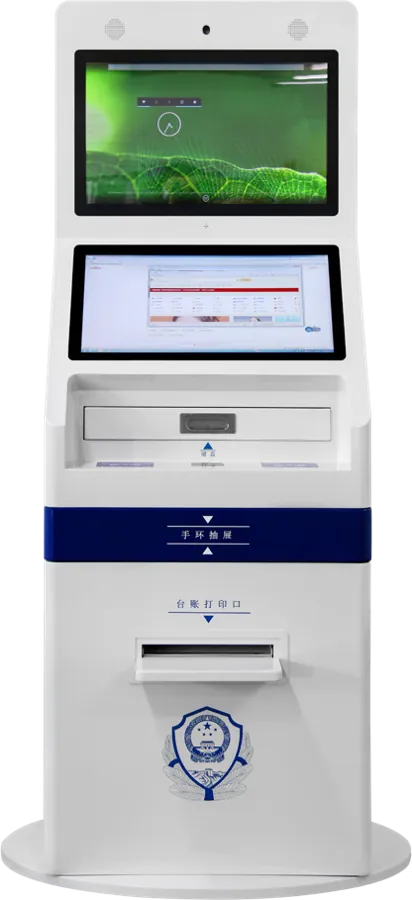

Dual-screen service terminal
- Two screens: one for the user, one for guidance or ads
- ID card reading and face verification
- Card swipe and document printing
- Android + Windows dual system option
21.5″ dual · 10-point touch

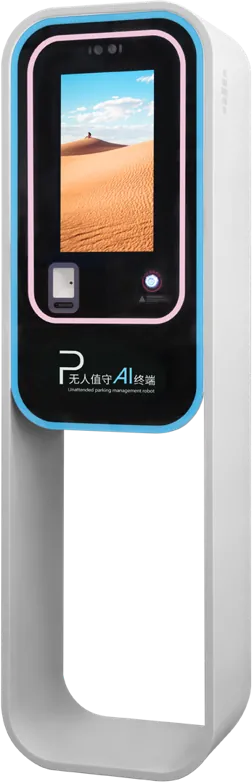

Unattended AI terminal
- Face recognition and license-plate detection
- Outdoor touch screen and QR module
- One-key SOS call button
- Sand-blasted, rust-proof sheet-metal body
Outdoor · Android
Bank & government terminal
- Bank-card slot, receipt outlet, QR scanner
- Biometric and ID authentication modules
- Dual-screen asynchronous display
- OTA updates and scheduled power on/off
RK3288 / RK3399 · 4G

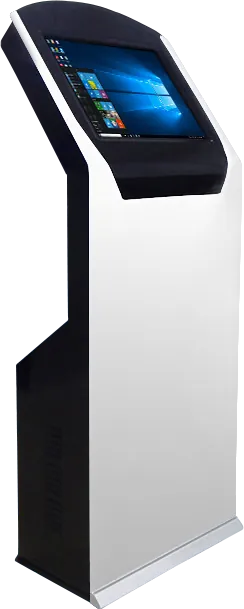

Queue ticket kiosk
- Ticket issuing with calling-system integration
- Infrared touch, anti-glare tempered glass
- Industrial board, Intel dual-core
- Cold-rolled steel cabinet with fan cooling
Windows · infrared touch
Reference specification — 32″ payment kiosk
| Display | 32″, 1920 × 1080, 300 cd/m², 4000:1 |
|---|---|
| Touch | 10-point capacitive, 8 ms |
| Mainboard | RK3399, 4 GB, 64 GB SSD, Android 8.0 |
| Peripherals | Thermal printer, 2D barcode engine, card reader/writer, 5 MP face camera, PIR sensor |
| Network | Ethernet 10/100, Wi-Fi 802.11 b/g/n, 4G |
| Audio | 5 W amplifier |
| Dimensions / weight | 1810 × 550 mm · 60 kg |
| Power | 220 W |
Specifications are from the factory catalog and may change with configuration. Ask for the current spec sheet.
What you can customize
- Peripheral set matched to your workflow
- Screen size, single or dual display
- Cabinet color, logo, signage header
- Your app pre-installed in kiosk mode
Applications
- Quick-service restaurants
- Hotels and serviced apartments
- Utilities, banks and government halls
- Hospitals and clinics
Frequently asked questions
Which peripherals can a self-service kiosk include?
Common modules are an 80 mm thermal receipt printer, A4 printer, QR/barcode scanner, ID or IC card reader, room-card dispenser, NFC, face-recognition camera, speaker and microphone. We select and test the combination for your workflow.
Can you install our own kiosk software?
Yes. We pre-install and test your Android APK or Windows application in kiosk mode before shipping, and our software team can adapt it to the printer, scanner and card reader we fit.
Do you make wall-mount and countertop kiosks?
Yes. The self-ordering kiosk comes in floor-standing and wall-mount versions, and the 15.6″ check-in terminal is a countertop model.
Related product lines
Request a quote for this range
Send a size, a sketch or a reference model. You get a spec sheet and factory price from an engineer, usually within one working day.
