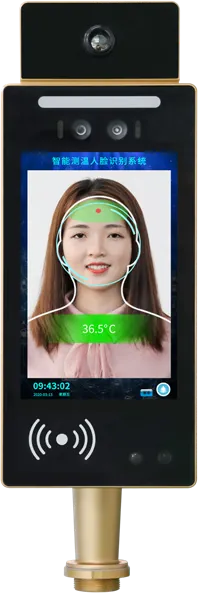

8″ face recognition terminal
- RK3288 quad-core, Android 7.1
- Binocular 2 MP camera with IR liveness
- Optional body-temperature module
- Pole, wall or turnstile mount
8″ · Android / Linux
Face Recognition Terminals
Face recognition terminals for access and attendance
A face recognition terminal verifies a person at a door or gate in under half a second and records attendance. Ours use a binocular camera with infrared live detection, connect to door locks and turnstiles, and add card, QR or fingerprint readers when needed.
Key facts
- Recognition speed
- 0.34 s; false-accept rate < 0.01%
- Camera
- 2 MP binocular wide-angle, infrared live detection
- Face library
- 11,000 faces on device
- Options
- IC/ID card, QR code, fingerprint, temperature, 4G
- Integration
- Door locks, speed gates and turnstiles
Models in this range

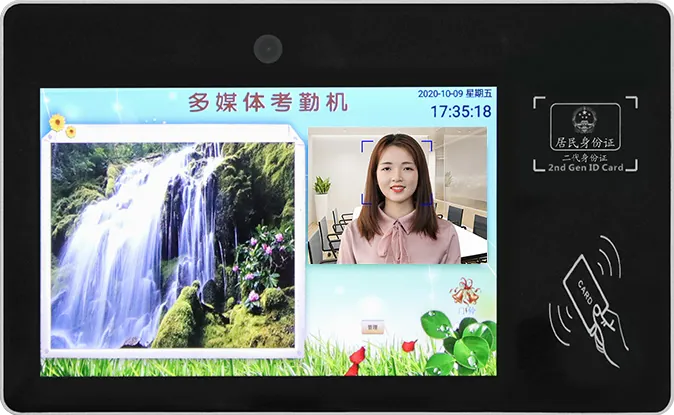

Attendance terminal with card reader
- Face, card and fingerprint clock-in
- Shows name on successful check
- Offline attendance and auto reports
- Video monitoring and intercom
Landscape · wall mount
Slim access control panel
- Slim portrait design for door frames
- ID document comparison option
- Management software platform
- Custom size, color and logo
Portrait · wall mount
Desktop face terminal
- Desktop base for reception and security desks
- Voice prompts
- QR code scanning option
- Connects to gates and visitor systems
Desktop · QR option
Reference specification — 8″ face recognition terminal
| Display | 8″ IPS LCD, 1280 × 800, capacitive multi-touch |
|---|---|
| Processor | Rockchip RK3288, quad-core Cortex-A17, 1.8 GHz |
| Memory / storage | 2 GB DDR3 · 16 GB eMMC (TF / SSD expandable) |
| OS | Android 7.1 (Linux version available) |
| Camera / liveness | 2 MP binocular wide-angle · infrared liveness |
| Recognition | 0.34 s · FAR < 0.01% · 11,000-face library |
| Temperature (option) | 20–60 cm, 10–42 °C, ±0.3 °C |
| Network | Ethernet, dual-band Wi-Fi, Bluetooth, optional 4G |
| Power / environment | 15 W max · −20 to 40 °C · 10–90% RH |
Specifications are from the factory catalog and may change with configuration. Ask for the current spec sheet.
Frequently asked questions
Related buying guides
How fast is face recognition?
Our 8″ terminal identifies a face in 0.34 seconds with a false-accept rate below 0.01%, using a binocular camera with infrared live detection.
Can the terminal open a turnstile or door lock?
Yes. The terminal connects to door locks, speed gates and turnstiles, and supports card, QR code and ID verification as alternatives to face recognition.
Can it connect to our existing access-control or HR system?
Software and hardware are both customizable. Tell us the system and protocol you use and our engineers will confirm the integration approach before you order.
