RK3399 Android mainboard
- Hexa-core 2× Cortex-A72 + 4× Cortex-A53, 2.0 GHz
- Mali-T860 MP4 GPU, H.265 4K decoding
- Android 7.1 / 8.1 (upgradable)
- Dual-band Wi-Fi, BT, optional 4G
Kiosks · face recognition · 4K signage
Android Boards & Media Players
Android mainboards and media players for commercial displays
MJK started in 2005 as a display mainboard designer, and the same Rockchip RK3288 and RK3399 boards that run our kiosks and signage are available on their own. Our aluminium media player boxes turn any existing screen into a remotely managed signage player.
Key facts
- Chipsets
- RK3288 quad-core 1.8 GHz · RK3399 hexa-core 2.0 GHz
- Storage
- eMMC 8–128 GB; TF/SSD expansion
- Output
- Up to 4K display output
- Connectivity
- Gigabit Ethernet, dual-band Wi-Fi, Bluetooth, 4G, GPS (option)
- Peripherals
- Camera, touch, IR, serial ports for printers and readers
Models in this range

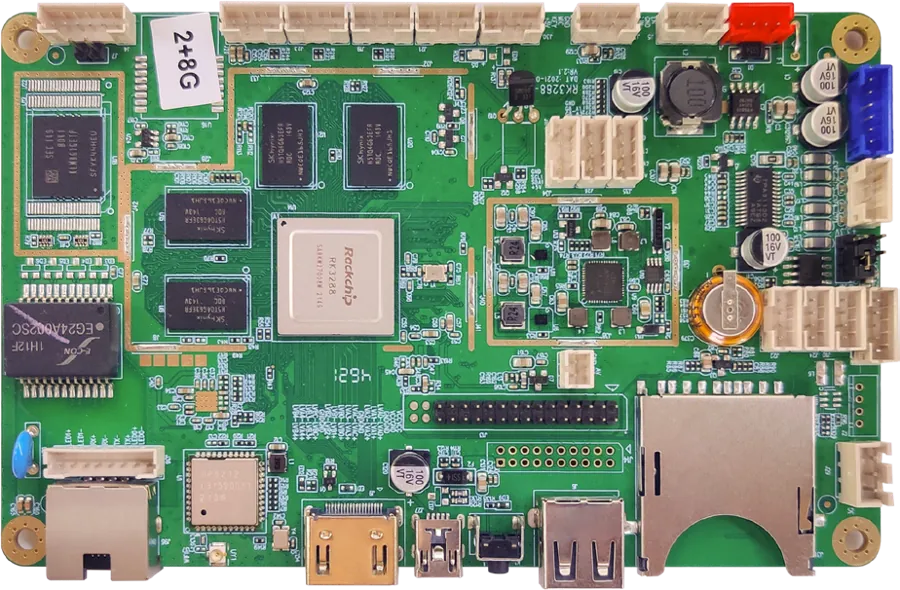

RK3288 Android mainboard
- Quad-core Cortex-A17, 1.8 GHz
- Mali-T764 GPU
- Proven in signage, class boards and POS
- Cost-effective for playback devices
Signage · POS · class boards

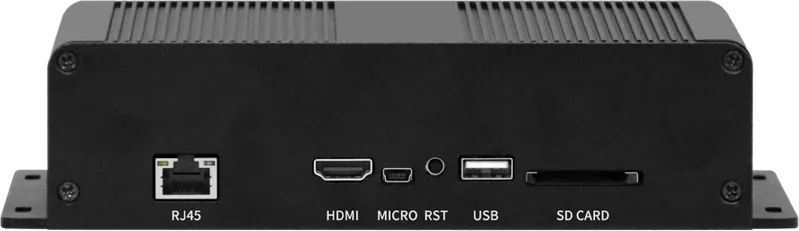

4K network media player box
- Turns any TV or monitor into a signage player
- All-aluminium fanless heat-sink body
- Publish to every store from one console
- RK3288 or RK3399 versions
HDMI 4K · Wi-Fi
Reference specification — RK3399 mainboard
| SoC | Rockchip RK3399, 28 nm HKMG |
|---|---|
| CPU | Hexa-core 64-bit, 2× Cortex-A72 + 4× Cortex-A53, up to 2.0 GHz |
| GPU | Mali-T860 MP4; OpenGL ES 3.1, OpenCL, DX11 |
| Memory | 2 GB (up to 4 GB) |
| Storage | eMMC 8 GB (16/32/64/128 GB optional), TF card |
| Network | 10/100/1000 Ethernet, 2.4/5 GHz Wi-Fi 802.11ac, Bluetooth 4.1, 4G LTE (optional) |
| Video | H.265, H.264, VP8 and more; 4K / 2K / 1080P |
| OS / languages | Android 7.1 / 8.1 · multilingual |
Specifications are from the factory catalog and may change with configuration. Ask for the current spec sheet.
What you can customize
- Board layout and interface set for your housing
- Firmware, launcher and boot logo
- Peripheral drivers (printer, scanner, reader)
- Long-term supply for your product line
Applications
- Kiosk and signage manufacturers
- System integrators
- Retail chains upgrading existing screens
- Smart-device startups
Frequently asked questions
Related buying guides
RK3288 or RK3399 — which board should I use?
RK3288 is cost-effective for signage playback and simple apps. RK3399 has a faster hexa-core CPU and stronger GPU for kiosks, face recognition and 4K content.
Can you customize the board interfaces?
Yes. We design the interface set and board layout to fit your housing and peripherals, and supply firmware with your boot logo and launcher.
What does a network media player box do?
It connects to any TV or monitor by HDMI and turns it into a networked signage player managed from our publishing platform.
Related product lines
Request a quote for this range
Send a size, a sketch or a reference model. You get a spec sheet and factory price from an engineer, usually within one working day.
